Vision systems

We are dedicated to the design, assembly marketing of superior visual i...


Read More...

Cosmetic inspection

Checks for, cracks, chips, airlines, dirt, glass particles, scratches, etc....


Read More...

Dimensional inspection

Dimensional inspection is performed on geometrical aspects of products. Thi...


Read More...

Printing inspection

Print inspection checks products for the presence and completeness of print...


Read More...

Quality control

Each inspection system is tested to ensure the measurement information is...


Read More...

Handling Operation

VIMEC systems are designed to provide long service life even in harsh envi...


Read More...
012345

Optical engineering is one of the key aspects in a vision system. VIMEC has dedicated research and development staff involved in the development of optimized optical configurations. Camera technology combined with dedicated illumination technology offers a great variety of inspection functionalities. In some cases these functionalities can be integrated into a single inspection system.

3D Printing | Rapid PrototypingIn house 3D printing (Rapid Prototyping) is used to create complex parts to allow immediate integration.

This way, customized assembly work can be eliminated to result in narrow overall tolerances and high reproducibility for the vision application.

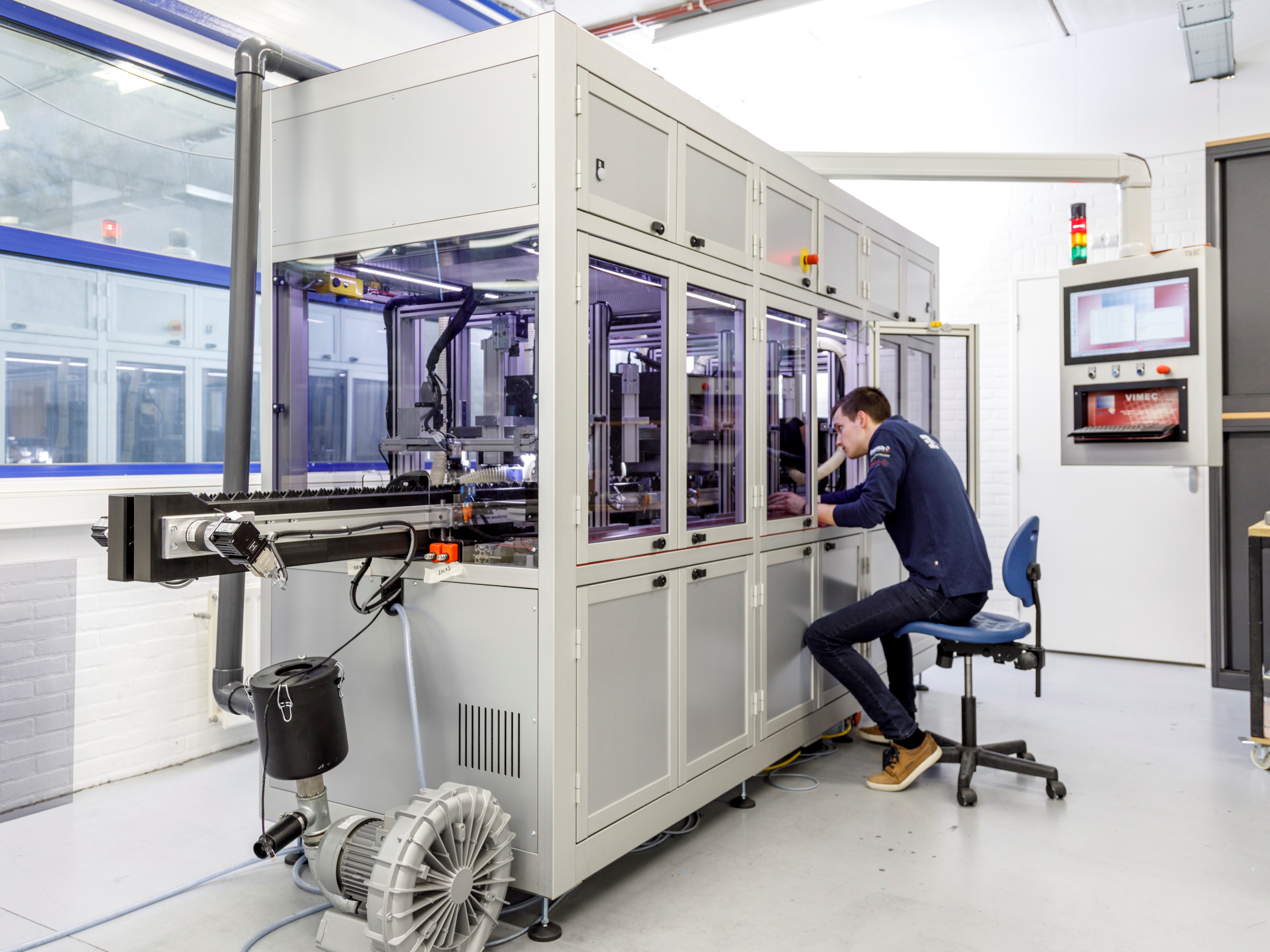

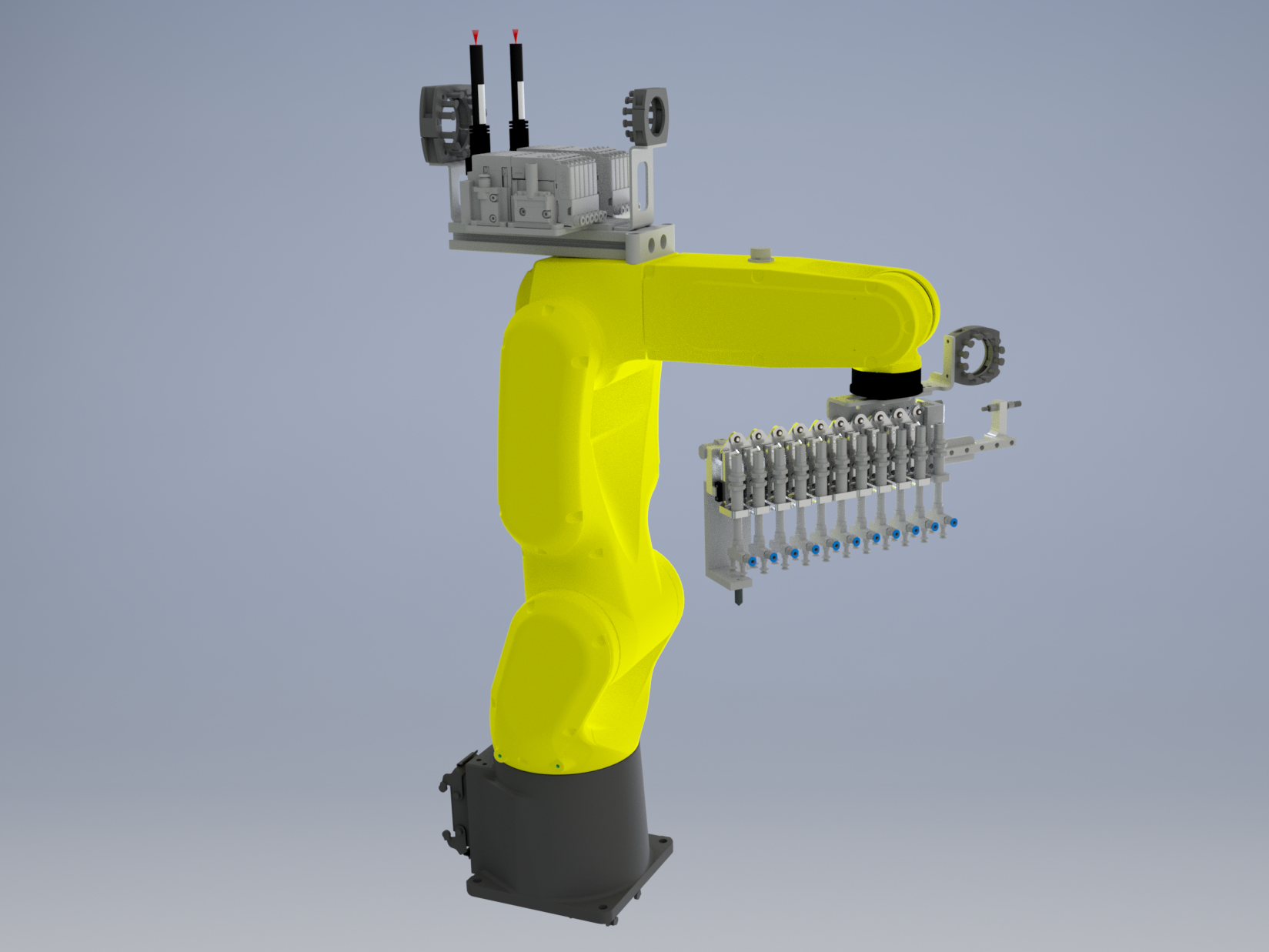

Mechanical design is done at VIMEC supported by 3D design software. Optical engineering design is combined with robust mechanical solutions to form the basis for a vision systems.

The components are integrated in an industrial housing to shield then from the (production) environment.

VIMEC provides documented evidence that the inspection system meets the standards and requirements defined by the customer and industry. The 'quality' of the inspection system is documented in the Factory & Site Acceptance Test reports. These reports are sometimes further segmented in the Installation Qualification, Operational Qualification and Performance Qualification (IQ/OQ/PQ) reports.

VIMEC supports and services its visual applications around the world. The installed base includes: USA, Mexico, Brasil, France, Germany, Italy, Egypt, Pakistan, China, Japan etc. Through remote connection (secure Internet connection) VIMEC engineers can log in to the inspection system and take over control for training and service purposes. On site performance is performed to ensure the inspection system meets the quality standards and inspection accuracy required.

Visual Inspection & Monitoring Solutions.

Visual Inspection | Taken at Start Up of Production



We are dedicated to the design, assembly & marketing of superior visual inspection systems. To achieve this goal, VIMEC employs mechanical-, software- and optical engineers. The knowledge of the various disciplines is combined into the construction of visual inspection applications. For the markets served, a full range of standardized systems has been developed. But our knowledge of mechanics, software & optics has also been applied in dedicated projects outside the markets served.



Visual Inspection | Taken at Start Up of Production



Our software provides information for production/process monitoring and quality control. Bar charts can be reviewed during production or after closing the Job and/or shift. All statistical information is stored on the computer or sent to an external server.

An automated email message containing the statistical information can be sent automatically to the quality department. A production overview report (in .pdf) can also be sent automatically by email to multiple staff members.

Information can be reviewed at the production location or at a remote site (head office or during travel).

Training

Training (in France)VIMEC provides in depth training to support full operation of the vision systems and the use of the statistical measurement data.

Inspection technology

Machine vision | Camera vision

Inspection technology by VIMEC gives superior inspection. Read more...

Process control (HE)

Vial process control HE

The PAN inspection system is used for vial process control. Read more...

Print defects

Print defect on pharmaceutical containerPrint inspection includes detection of missing letters, numbers, expiry dates etc. Read more...

Crack detection

Crack in pharmaceutical containerCrack detection by area scan and line scan cameras using bright field / dark field illumination. Read more...
